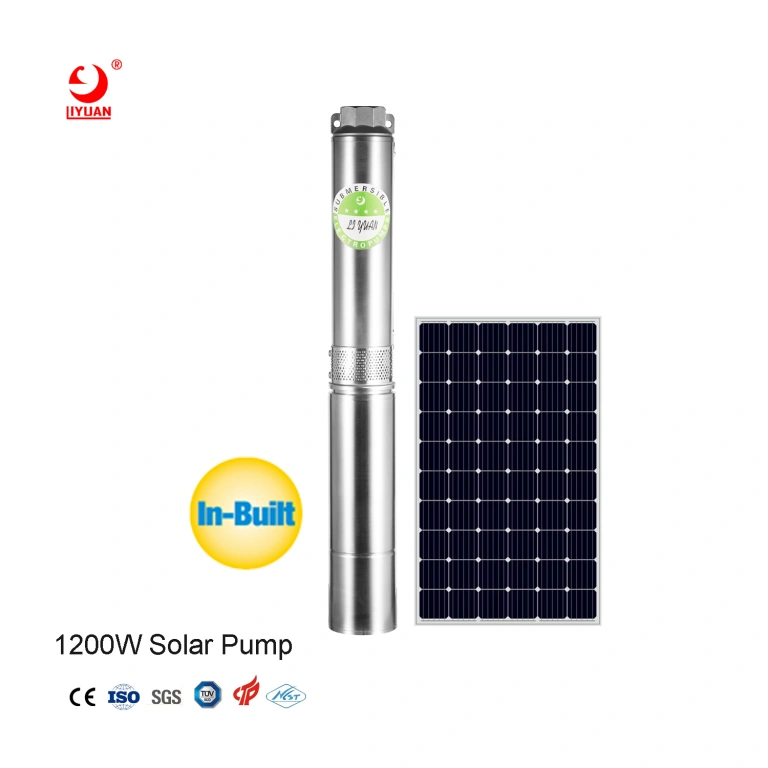

1200W DC Sumersible Solar Pump

1 .Permanent-magnet BLDC High Efficiency Motor
2.Stainless Steel 304 motor
3.Plastic/stainless steel outlet
4.Encapsulated water filled motor(No pollution to water source)
5. Thrust Bearing system(Longer lifespan )
6. No risk from machnical seal leakage
7. High efficiency MPPT and Vector control
8. Dry-running protection
9. Controller:
1) MPPT Efficiency Max.98%
2) Enclosure class:IP65
3) Ambient temperature:-15°C~60°C
4) LED displays the power, voltage, current, speed etc working condition.
5) Water proof and leak-proof: Double seal effect.
6) Soft start: No impulse current, protect the pump motor.
7) Automatically start and stop working.
8) High voltage/Low voltage/Over-current/High temperature protection

Product categories

Motor	DIM &Power	3” / 1200w
	Voltage	80-200V Best: 96-130V
	Type	Water cooled SS304 Permanent-magnet BLDC high efficiency motor
Pump	Pump DIM	3”/4”
	Pump outlet	1.5”/2”
	Impeller	PC
	Casing	SS304
MTTP Controller	External	Protection function:
		Dry-running ,Reverse ,Over-load ,Over-voltage ,Low-voltage
		Over-current, Over-power ,Lost phase
		Liquid level control
	Internal	Protection function
	Internal	Liquid level control requires optional monitor
Solar panel proposal		410W*4 PCS
Accessories		Waterproof tape, electrical tape, self-adhesive tape, rope buckle, clamp, water outlet, terminal block, MC4 connector, heat shrink tubing

3SPW/N1-11P

Model	3SPW/N1-11P 72M-3.5m3/h-100V-600W				Pump DIM	3”	Pump outlet	1.5”
m3/h	3.5	3	2.5	2	1.5	1	0.5	0
L/min.	58	50	41.6	33	25	16.6	8.3	0
H(M)	3	13	17	36	45	56	66	72

4SPW/N2-5P

Model	4SPW/N2-5P 51M-5.2m3/h-100V-600W			Pump DIM	4”	Pump outlet	2”
m3/h	5.2	5	4	3	2	1	0
L/min.	86	83	66.6	50	33	16.6	0
H(M)	0	1	16	28	36	43	51

3SPW/N3-5P

Model	3SPW/N3-5P 38M-7.2m3/h-100V-600W				Pump DIM	3”	Pump outlet	1.5”
m3/h	7	6	5	4	3	2	1	0
L/min.	116	100	83	66.6	50	33	16.6	0
H(M)	3	10	16	23	27	32	36	38

4SPW/N3-4P

Model	4SPW/N3-4P 52M-5.9m3/h-100V-600W			Pump DIM	4”	Pump outlet	2”
m3/h	6	5	4	3	2	1	0
L/min.	100	83	66.6	50	33	16.6	0
H(M)	0	10	21	31	40	47	52

4SPW/N4-3P

Model	4SPW/N4-3P 41M-7.5m3/h-100V-600W				Pump DIM	4”	Pump outlet	2”
m3/h	7	6	5	4	3	2	1	0
L/min.	116	100	83	66.6	50	33	16.6	0
H(M)	3	10	17	25	26	36	38	41

4SPW/N8-2P

Model	4SPW/N8-2P 21M-13.3m3/h-100V-600W			Pump DIM	4”	Pump outlet	2”
m3/h	15	12	10	8	6	3	0
L/min.	250	200	166	133	100	50	0
H(M)	0	4	8	10	14	19	21
