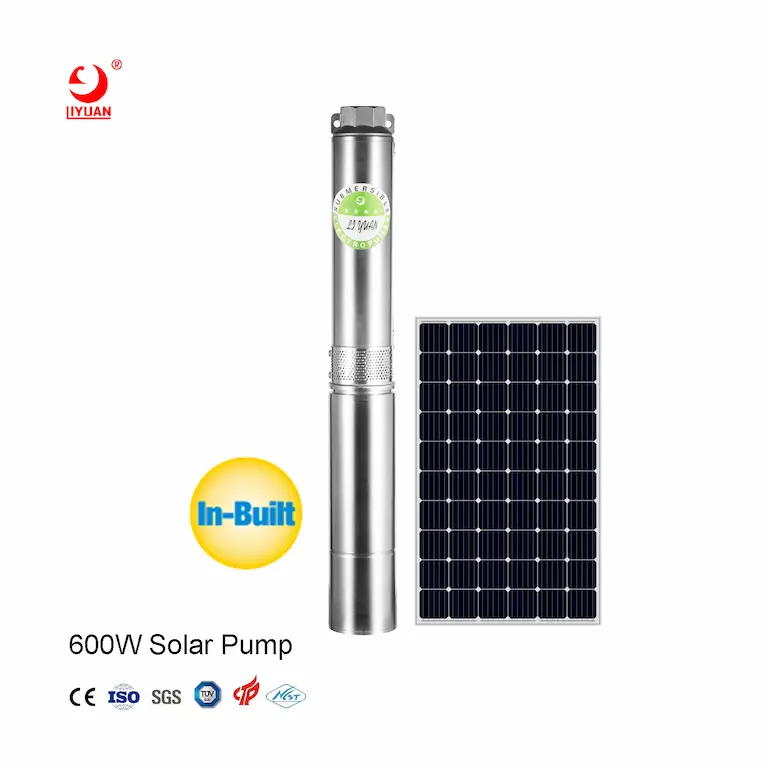

600W DC Sumersible Solar Pump
1.Can be powered by both solar panel and battery
2. Environmental protection, clean energy
3. High efficiency permanent magnetic motor, efficiency improved by
20~40%
4. Over voltage and under voltage protection
5. Over current protection
6. Locked rotor protection
7. Lost phase protection
8. Low water level sensor protection
9. High water level sensor protection
10. Reverse protection
11. MPPT function (Maximum Power Point Tracking)
12. Low temperature rise
AC/DC Hybrid Brushless Solar Pump
1.Brushless permanent magnetic motor, efficiency improved by 20%-40%,
frequency conversion and controller outside
2. Soft start running, make motor life longer
3. Powered by AC/DC (AC power include: grid electricity and generator
electricity; DC power include: solar panel and battery)
4. Supply voltage range: 90~460V DC (Solar panel Voc voltage);
90~240V AC at 50/60Hz
5. Reverse protection
6. MPPT built inside
7. Over current protection
8. Locked rotor protection
9. Phase deficiency protection
10. Low water level sensor protection
11. High water level sensor protection
12. AC/DC input option by manual or automatic
13. Remote control system (option)
Installation 600W DC Sumersible Solar Pump
1.Easy installation and easy operation,connect with solar panel directly no need external controller
2. Can be powered by both solar panel and battery
3. Burshless permanent magnetic motor ,controller inside ,long working life and
high working efficiency
4. Dry-running auto protection
5. Franklin motor standard
6. High-quality full SS304 materials
7. Thicker material ,More durable ,More power
Request Finish Swatches & Project Pricing
Request Finish Swatches & Project Pricing
For export quotations, bulk orders, or project cooperation, Get in Touch with our sales team.
Email:Liyuan@liyuan-pump.com
WhatsApp:+86 181-2828-2767
| Motor | DIM &Power | 3” / 600w |
|---|---|---|
| Pump | Voltage | 40-100V Best: 60-76V |
| Type | Water cooled SS304 Permanent-magnet BLDC high efficiency motor | |
| Pump DIM | 3”/4” | |
| Pump outlet | 1.5”/2” | |
| Impeller | PC | |
| Casing | SS304 | |
| MTTP Controller | External | Protection function: Dry-running ,Reverse ,Over-load ,Over-voltage ,Low-voltage Over-current, Over-power ,Lost phase Liquid level control |
| Internal | Protection function Liquid level control requires optional monitor | |
| Solar panel proposal | 410W*2 PCS | |
| Accessories | Waterproof tape, electrical tape, self-adhesive tape, rope buckle, clamp, water outlet, terminal block, MC4 connector, heat shrink tubing | |
